APlusLift Falcon AP-9H – 9,000 LB 4-Post Portable Parking, Storage & Service Car Lift

The APlusLift Falcon AP-9H is a heavy-duty 9,000 LB 4-post portable car lift designed for parking, vehicle storage, maintenance, and service applications. Built with a proven design and high-quality materials, the Falcon AP-9H provides a reliable and practical solution for homeowners, automotive enthusiasts, garages, and restoration shops.

With its 110V 1.5HP hydraulic power unit, reinforced steel construction, CE-certified lifting structure, and powder-coated finish, the AP-9H combines convenient operation with long-term durability and corrosion resistance.

Key Features

• 9,000 LB lifting capacity for a wide range of cars, trucks, SUVs, and other vehicles.
• 3-Year / 36-Month Warranty for added peace of mind.

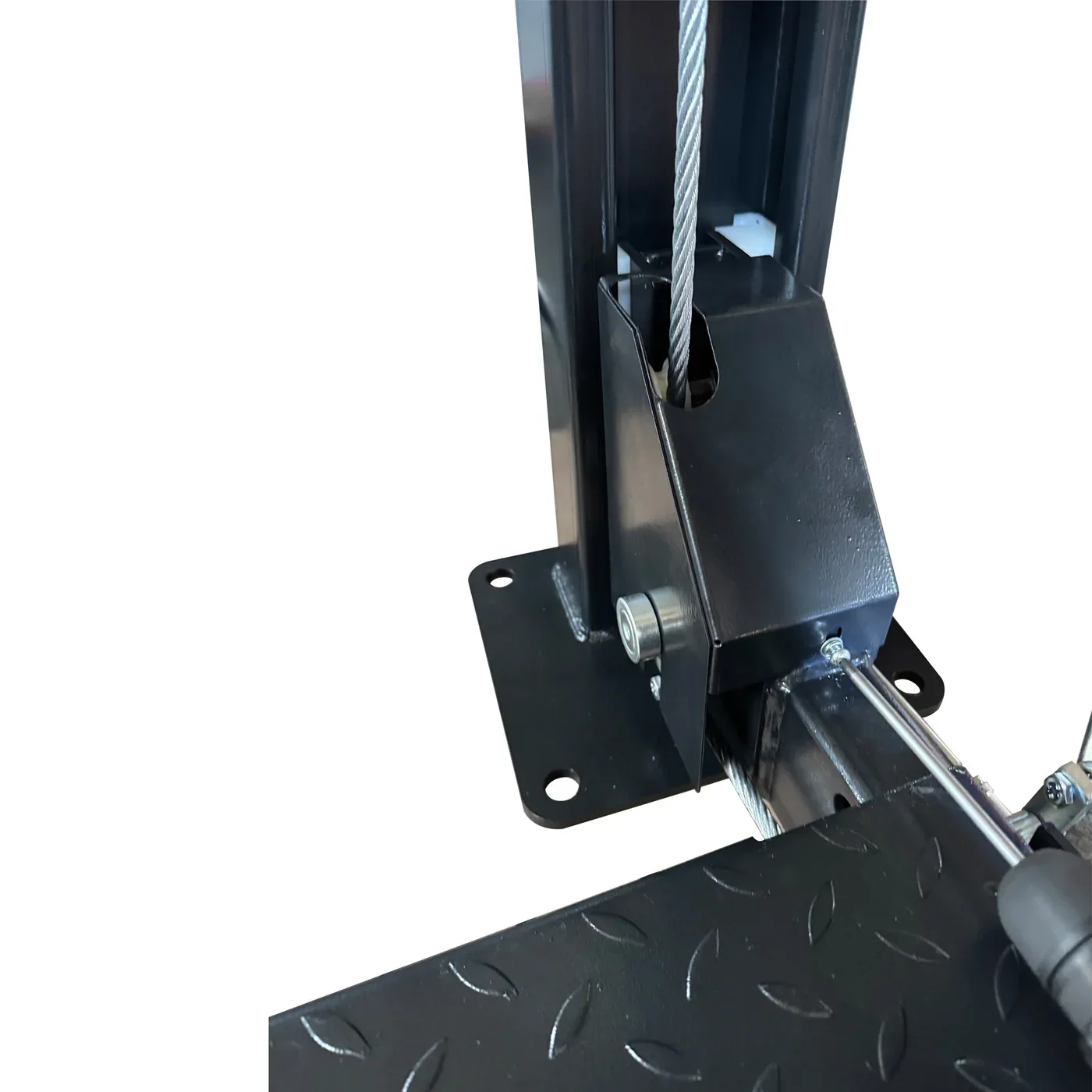

• Secondary slack-cable lock system provides fail-safe protection during operation.

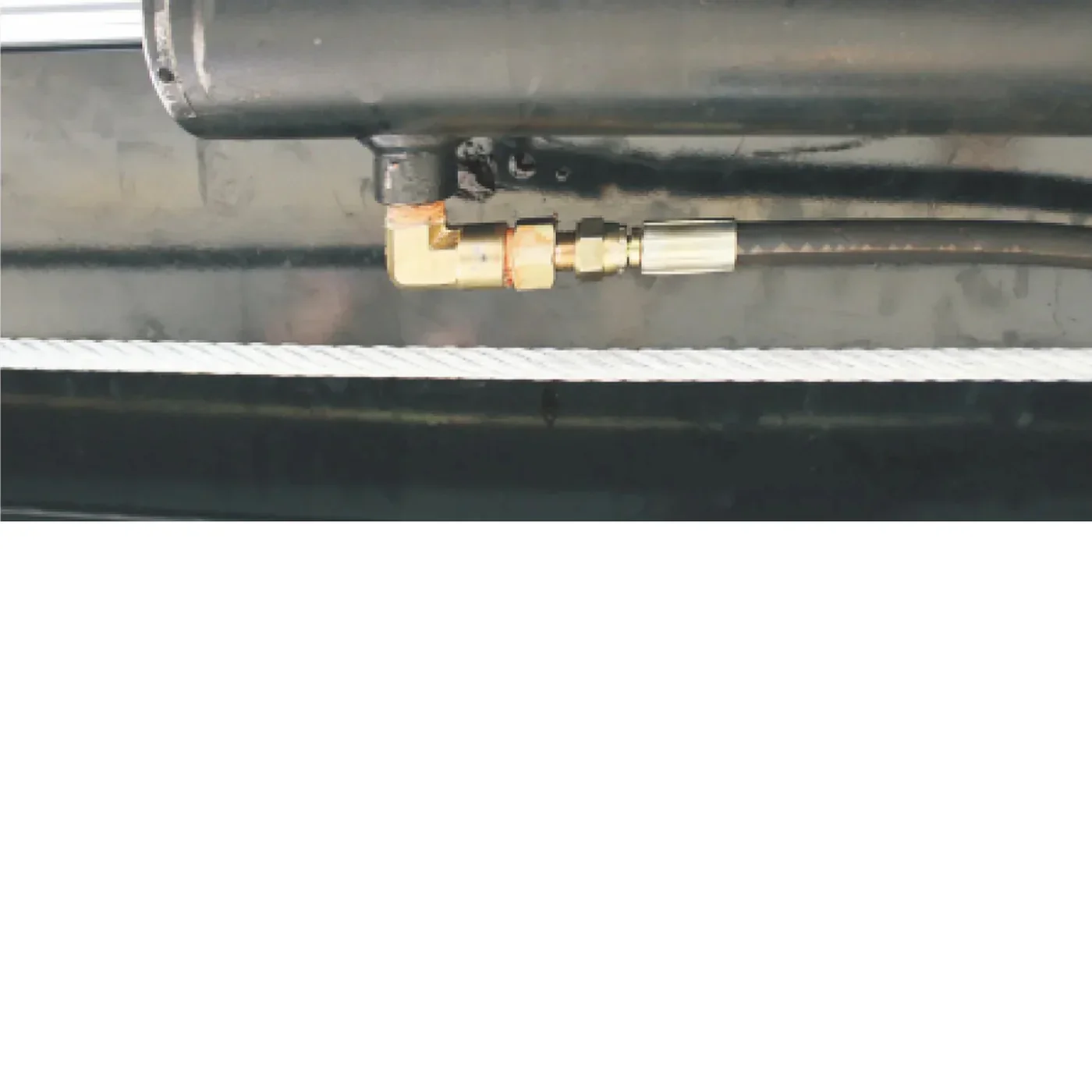

• Dedicated hydraulic return line for efficient hydraulic system operation.

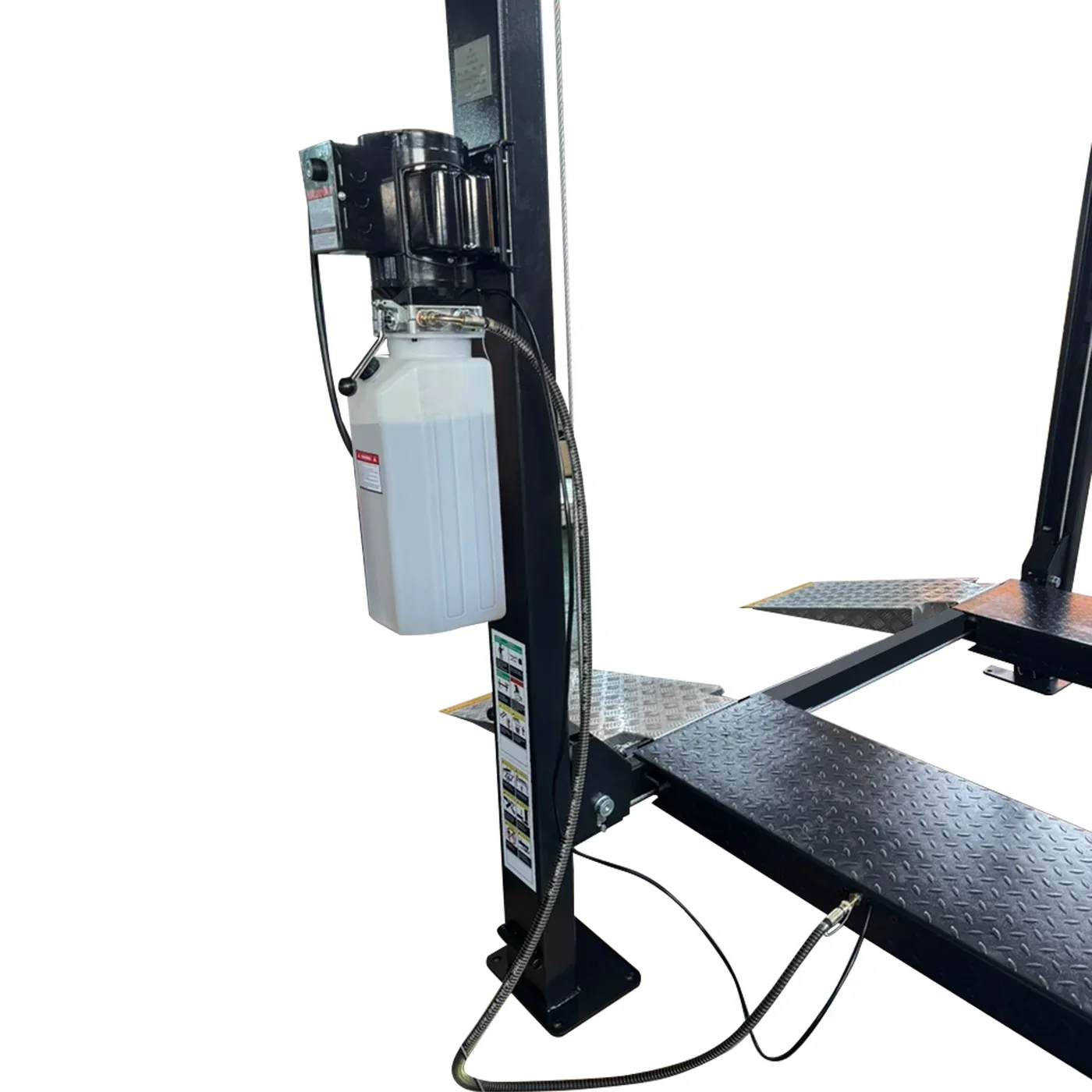

• 110V 1.5HP hydraulic power unit designed for efficient and safer lifting.
• CE-certified lift structure and hydraulic system.
• Tested to 115% Dynamic Load Capacity and 150% Static Load Capacity.
• Powder-coated finish provides superior corrosion resistance and durability.

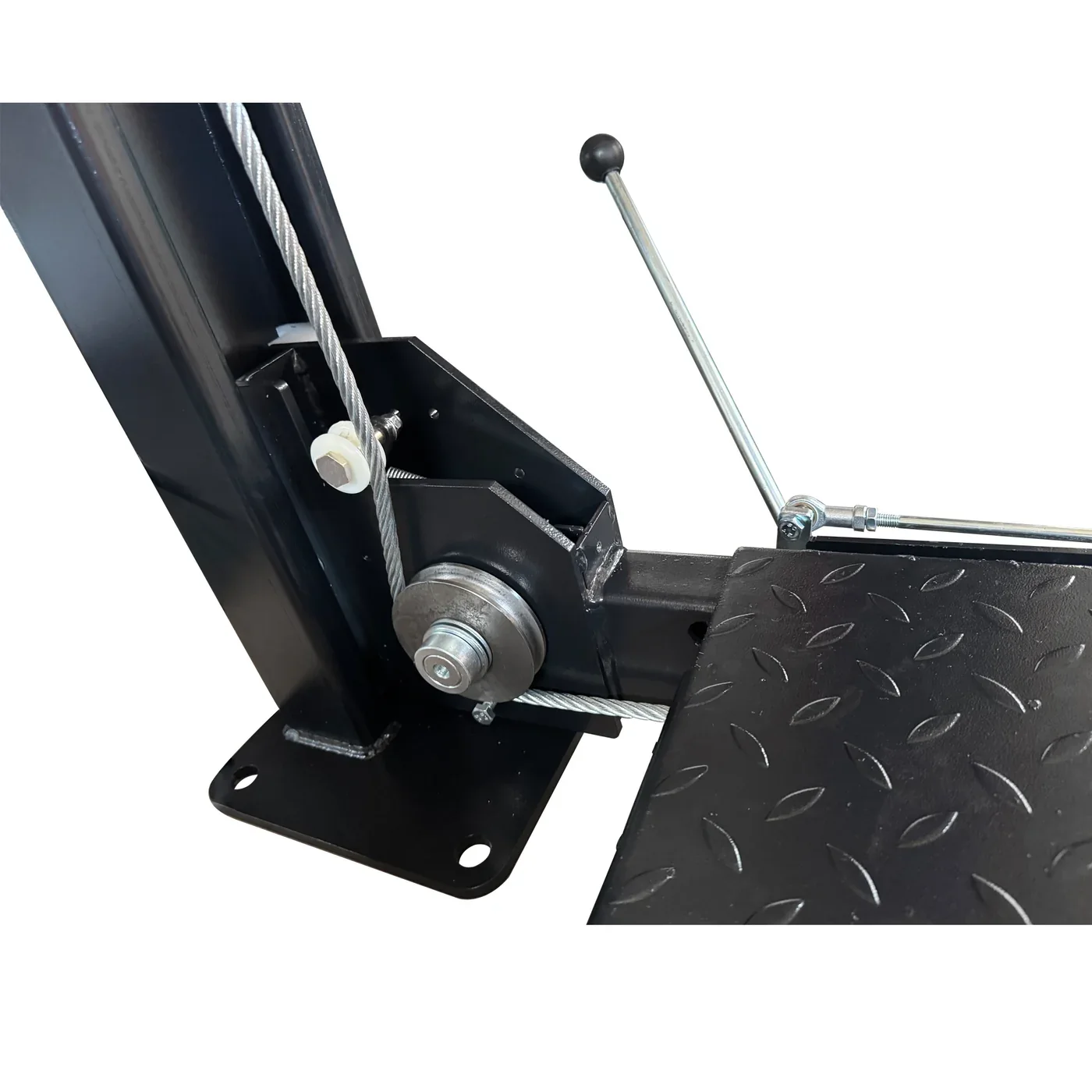

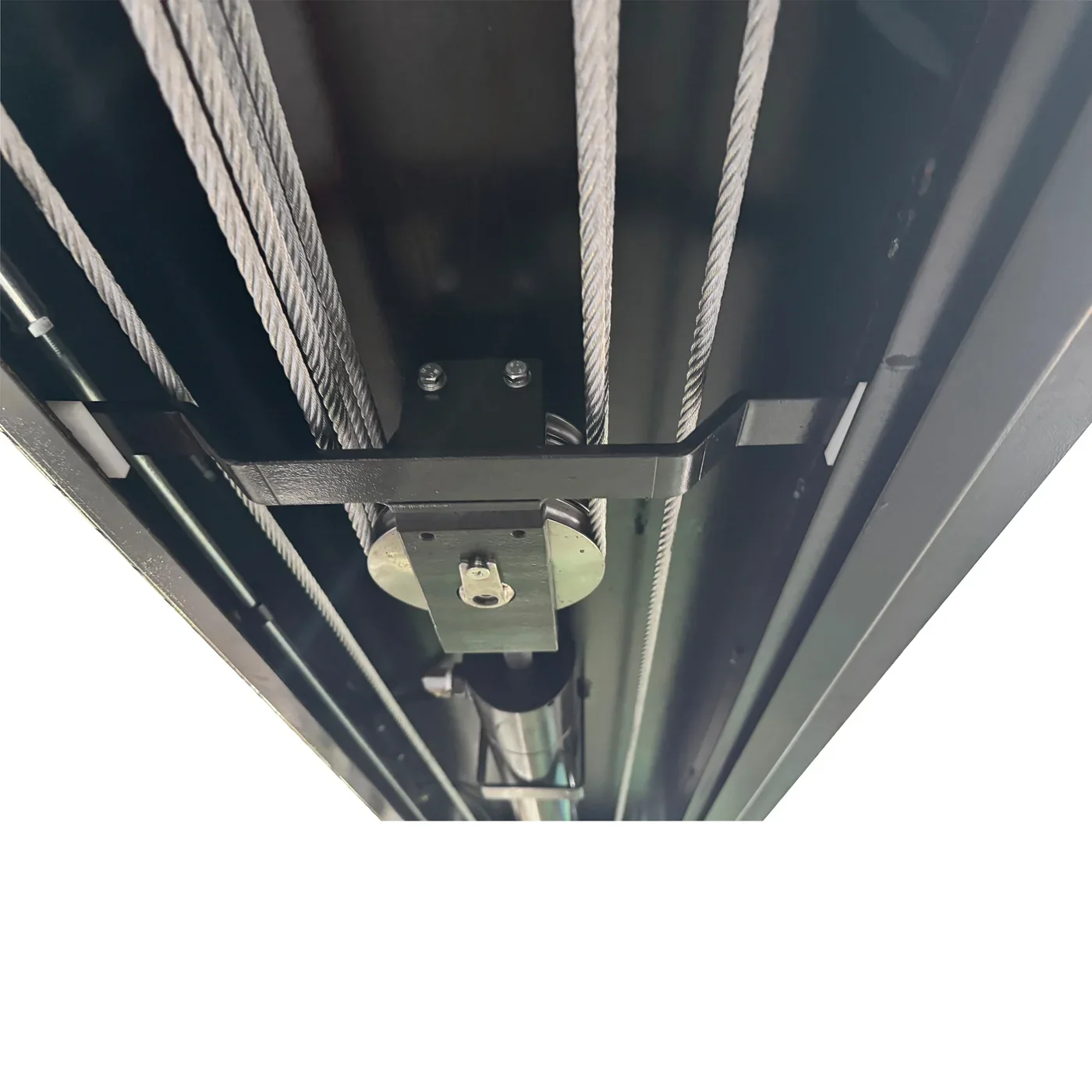

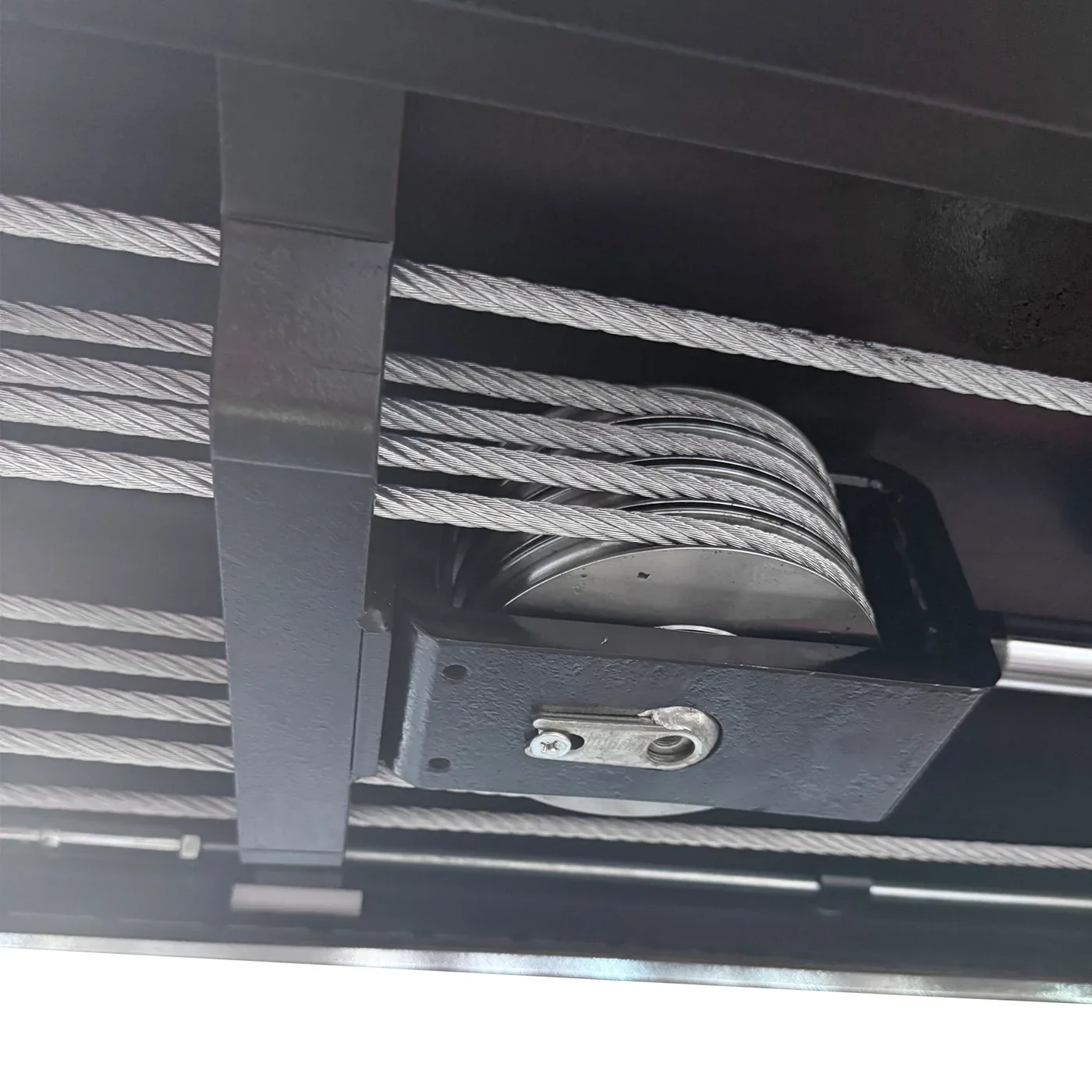

• Heavy-duty 3/8" diameter cables help reduce stress during synchronization and increase cable life.
• 11 locking positions provide multiple height options for parking, storage, and service work.
• Approximately 50-second lifting time for efficient operation.
• Designed for Parking, Storage & Service applications.

Complete Package Included

The APlusLift Falcon AP-9H package includes everything needed for convenient installation and operation:

• Free Caster Kit with Polyurethane Wheels
• Jack Tray
• 4 Drip Trays

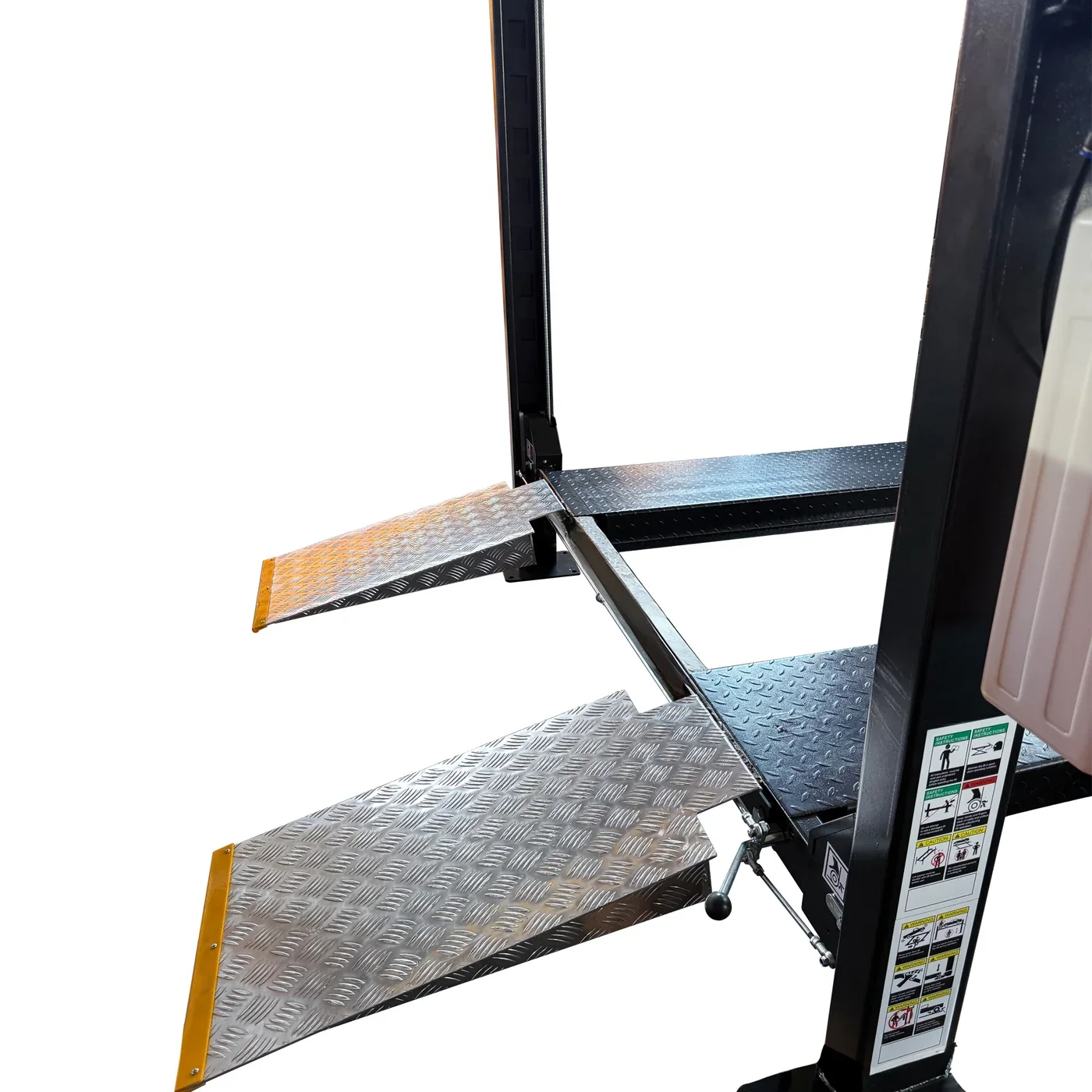

• 2 Removable Aluminum Approach Ramps
• 8-ft Power Cord with Plug

The caster kit allows the lift to be moved around the garage when properly configured and can be installed or removed in minutes. The included jack tray allows a jack to be used to raise one end of the vehicle, while the drip trays help prevent fluids from the upper vehicle from dripping onto a vehicle stored underneath.

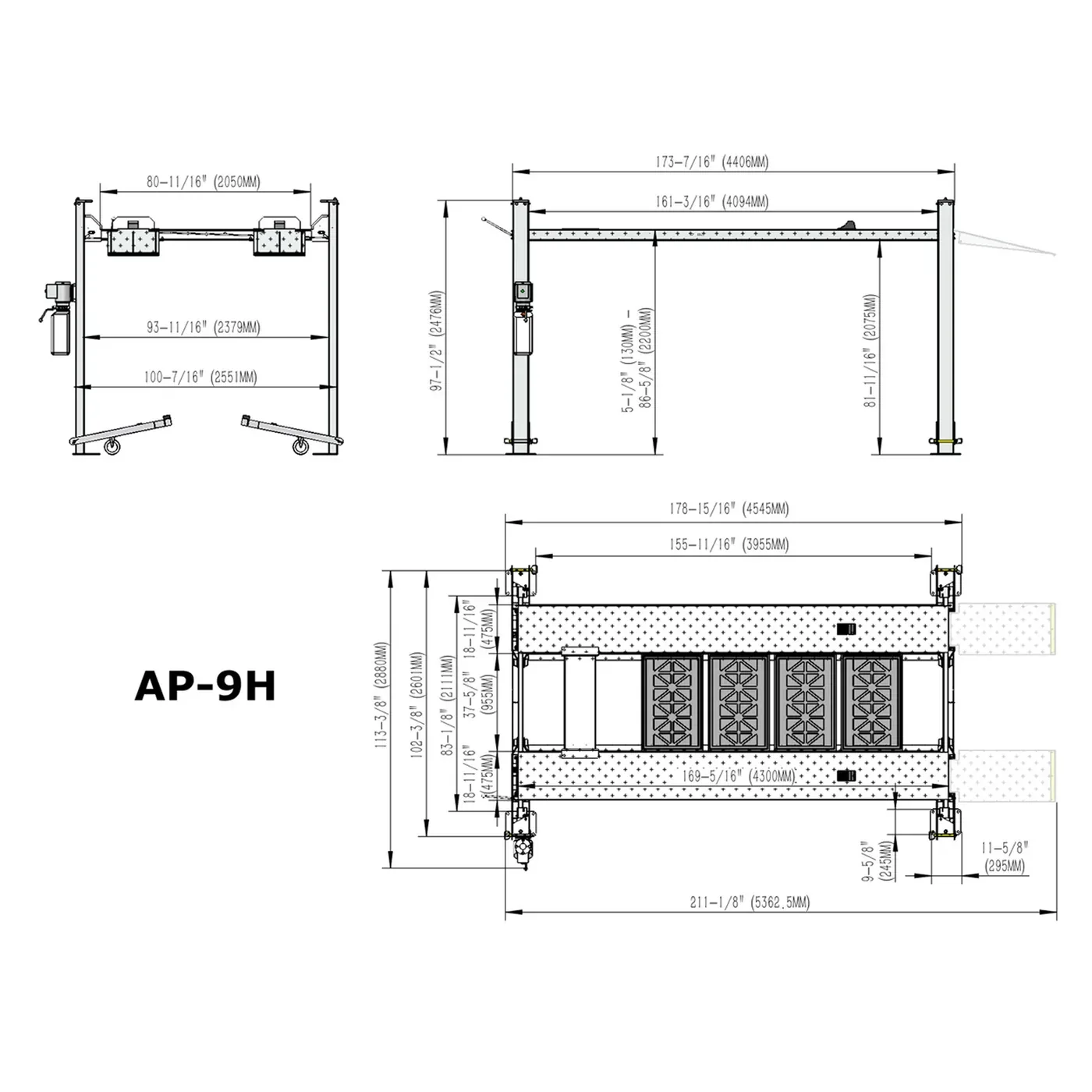

AP-9H Specifications

• Model: AP-9H
• Lifting Capacity: 9,000 LB
• Overall Dimensions: 179"L × 114"W × 98"H
• Drive-Through Width: 93"
• Lifting Height: 86"
• Clearance Under Runway: Up to 81"
• Runway Size: 169"L × 18 11/16"W
• Width Between Runways: 37 5/8" inside-to-inside
• Runway Gauge Steel: 6 (1/4")
• Lifting Time: Approximately 50 seconds
• Motor: 110V Single Phase, 1.5HP, 10A
• Recommended Breaker: 20A
• Power Cord: 8 ft with plug
• Hydraulic Oil: 3–5 gallons AW32/AW46 (not included)
• Required Concrete Thickness: 4"
• Shipping Weight: Approximately 1,850 LB
• Usage: Parking / Storage / Service
• Finish: Powder-Coated
• Warranty: 3 Years / 36 Months

11 Locking Positions

The AP-9H provides multiple locking positions to accommodate different vehicle heights and storage requirements:

• 20 6/9"
• 42 1/2"
• 46 1/2"
• 50 3/8"
• 54 3/8"
• 58 1/4"
• 62 1/4"
• 66 1/8"
• 70 1/8"
• 74"
• 77"
• 81 7/8"
