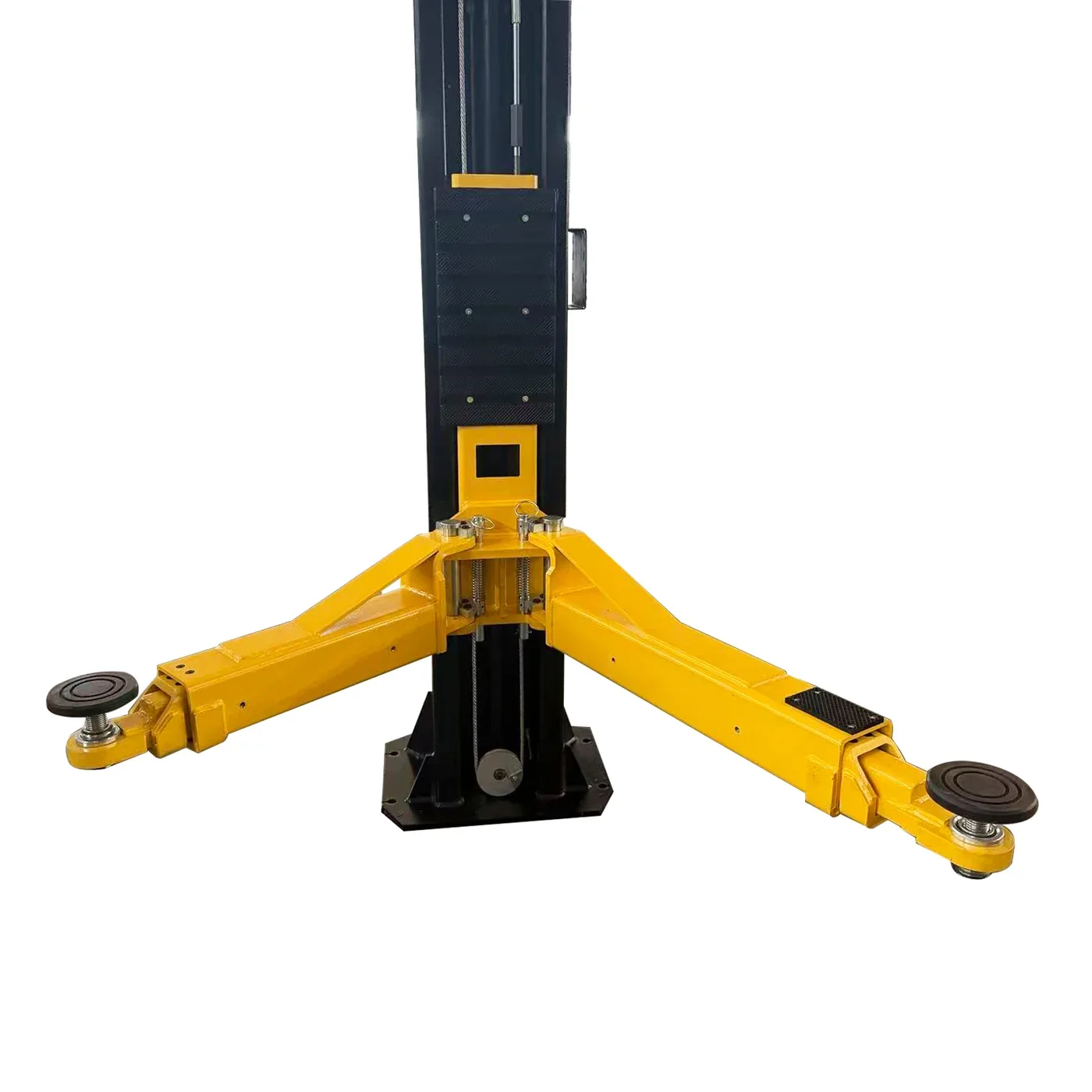

APlusLift 14,000LB 2-Post Overhead Symmetrical and Truly Asymmetrical Single Release Car Lift with 3 Year Warranty - HW-14ASY
USD 3,146
USD 4,495
APlusLift HW-14ASY – 14,000 LB 2-Post Overhead Car Lift
Heavy-Duty Performance with Symmetrical & Truly Asymmetrical Installation

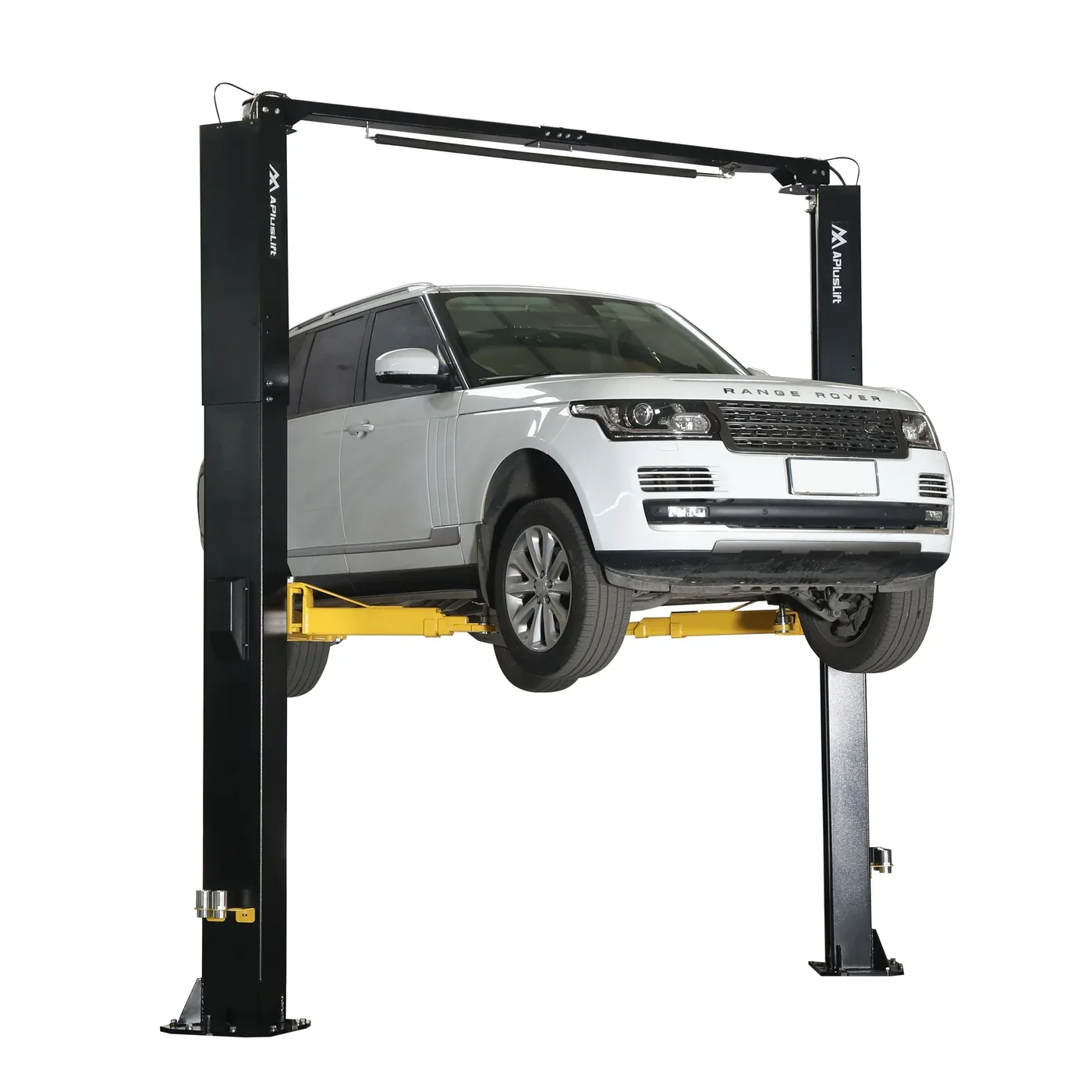

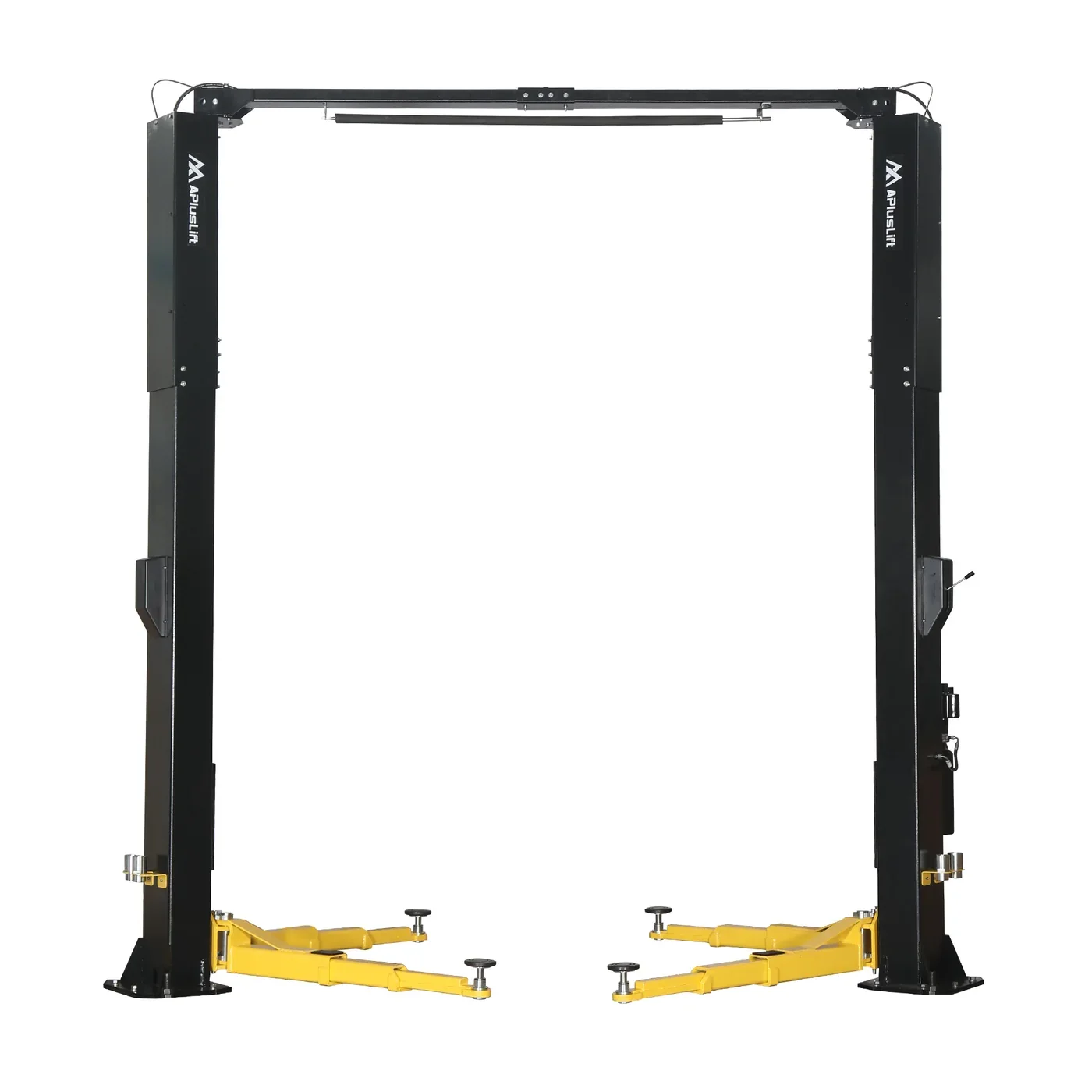

The APlusLift HW-14ASY is a heavy-duty 14,000 lb 2-post overhead car lift designed for professional automotive shops, garages, and demanding vehicle service applications. Its versatile column design allows for both symmetrical installation and true asymmetrical installation, with the columns rotated 30 degrees to provide improved door clearance and easier vehicle access.
Key Features
14,000 lb lifting capacity for heavy-duty vehicles and trucks
Symmetrical or true asymmetrical installation for greater installation flexibility
Single-point safety lock release for convenient operation

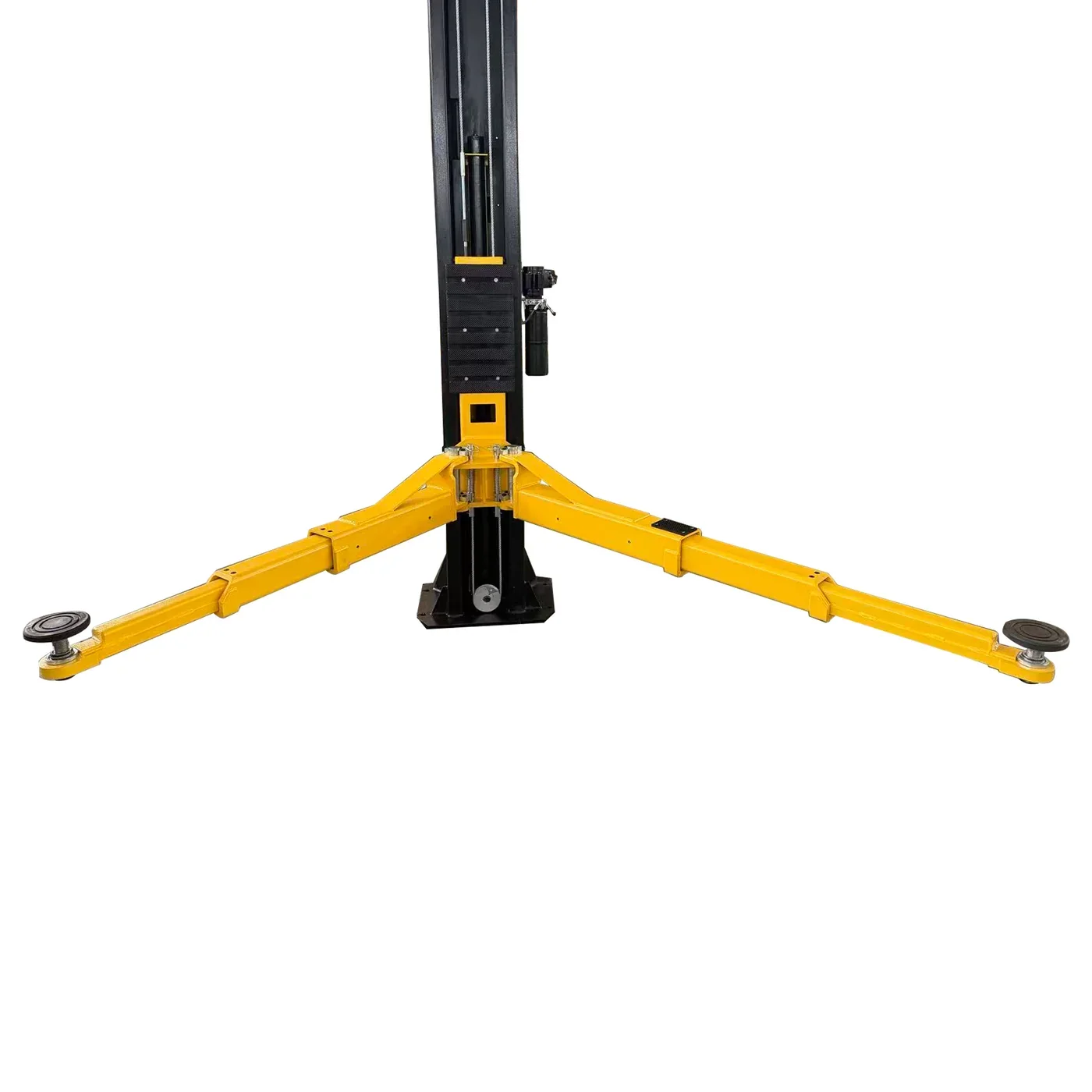

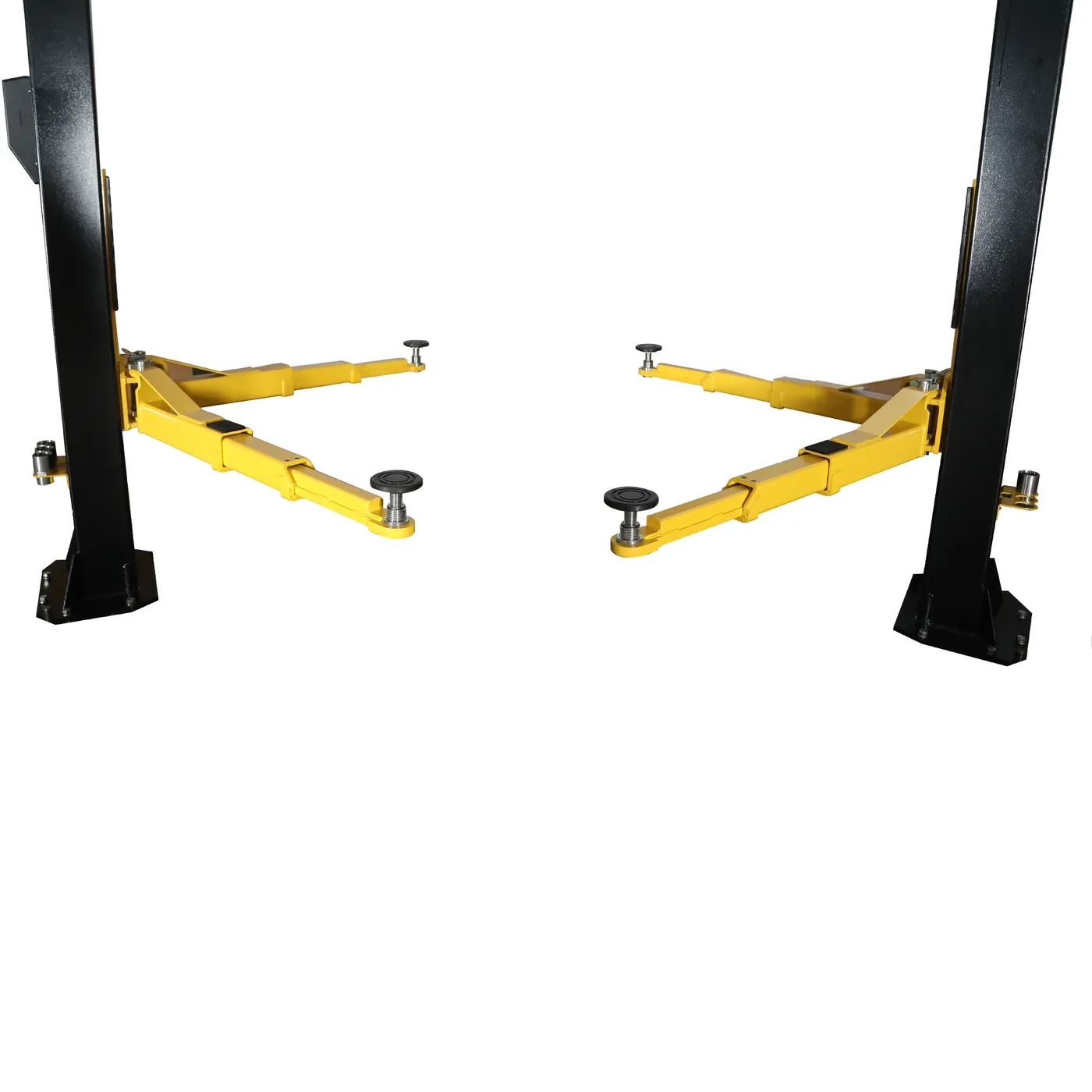

Front and rear 3-stage arms for flexible lifting-point positioning
119" drive-through width with symmetrical installation
109" drive-through width with asymmetrical installation
80" maximum lifting height with the included truck adapters
74" maximum lifting height without truck adapters
Dual hydraulic cylinders with direct-drive operation

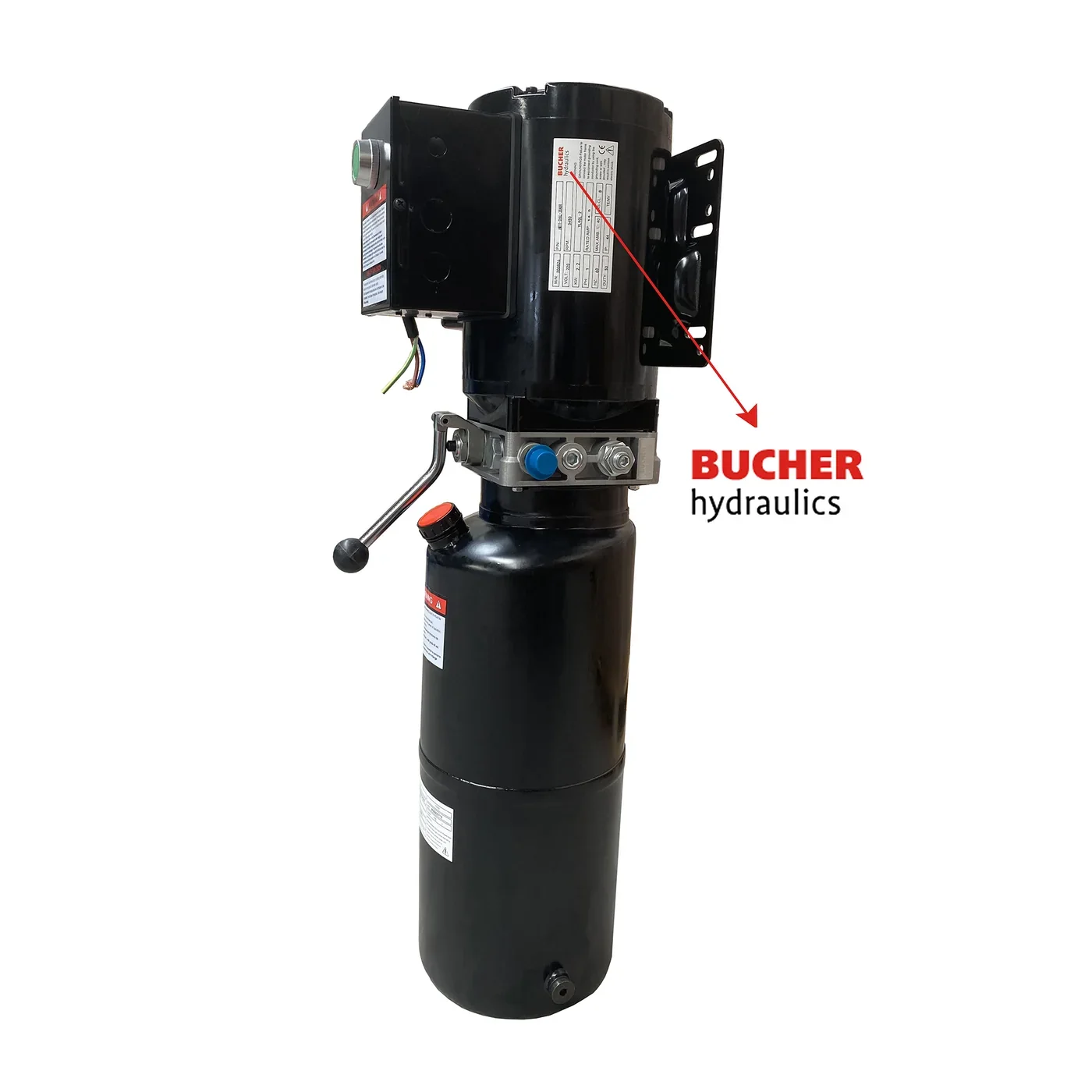

220V single-phase 4 HP motor, 13.6A; 20A breaker recommended
CE-certified lift structure and hydraulic system
Third-party tested to 115% dynamic load capacity and 150% static load capacity

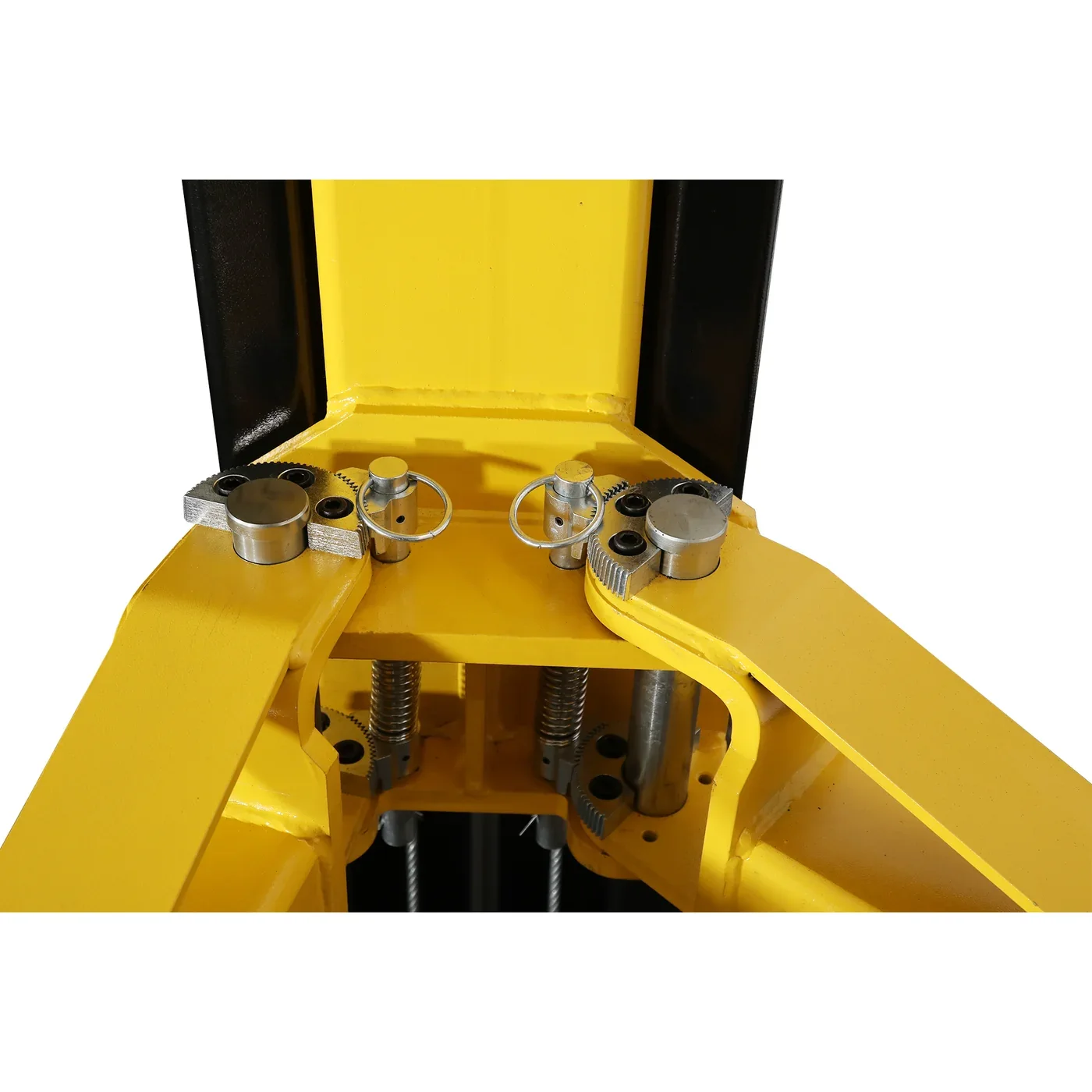

Automatic arm-lock restraints for added safety
Built-in hydraulic relief valve to help prevent overloading
Heavy-duty 3/8" synchronization cables with 4.5" pulleys
Durable robot-welded steel structure with powder-coated finish
3-year / 36-month warranty covering all parts
Included Accessories
The HW-14ASY includes:
4 adjustable screw pads
4 × 3" tall truck adapters
12 anchor bolts
12 shims
Technical Specifications
SpecificationDetails
| Model | HW-14ASY |
| Lift Type | 2-Post Overhead |
| Capacity | 14,000 lb |
| Installation | Symmetrical / Asymmetrical |
| Lock Release | Single Point |

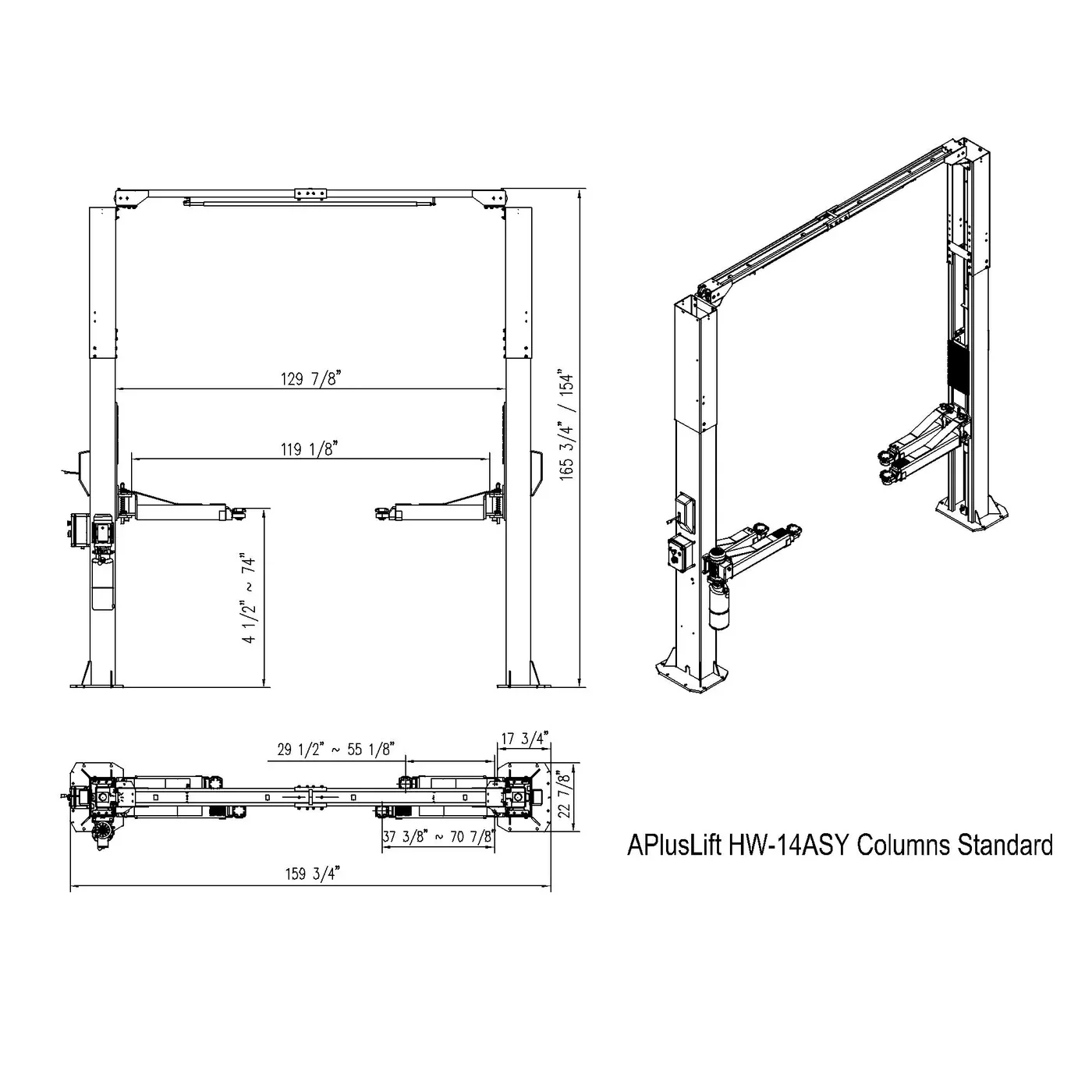

| Overall Height | 165 3/4" or 153 15/16" |

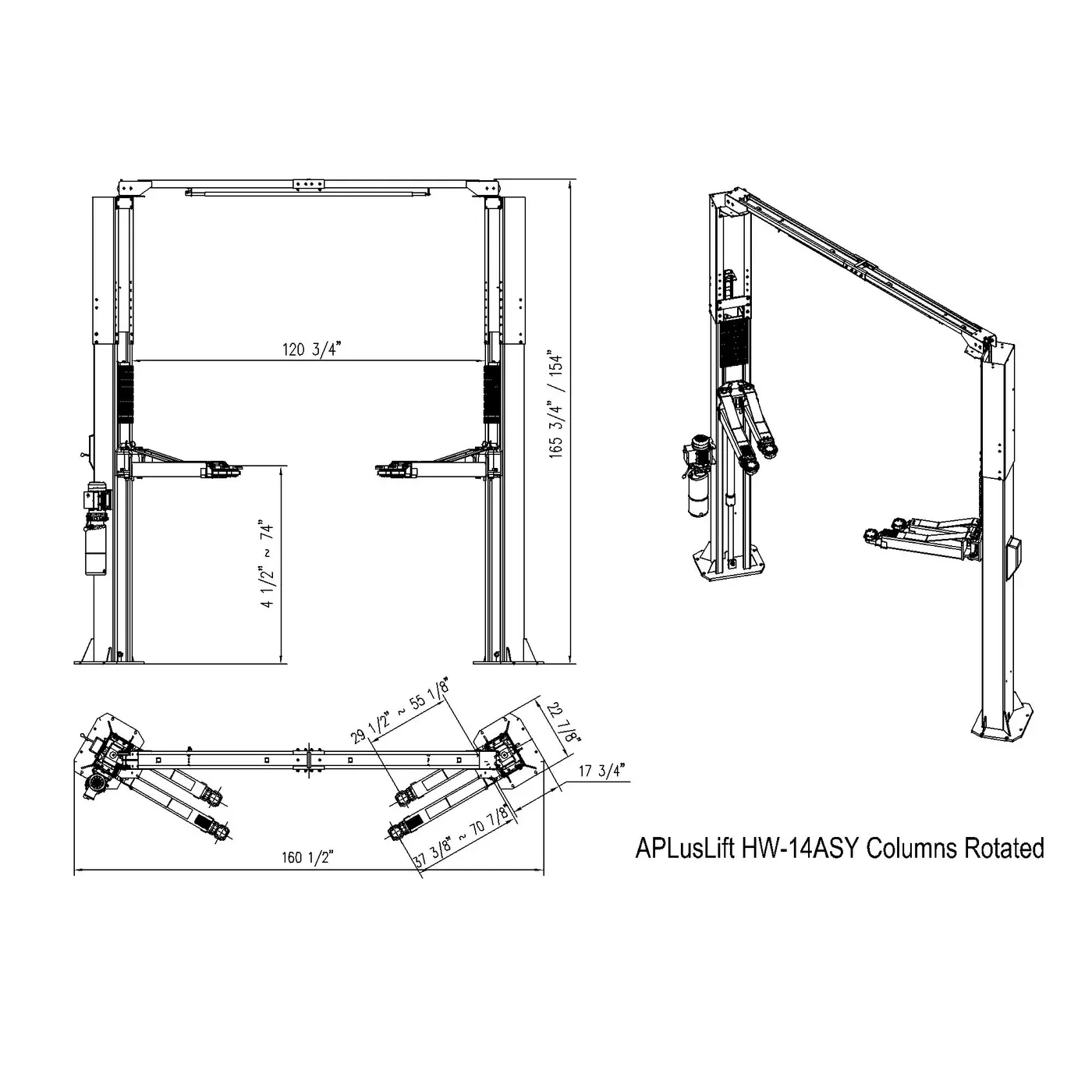

| Overall Width | 160" standard / 161" with columns rotated |
| Drive-Through Width | 119" symmetrical / 109" asymmetrical |
| Maximum Lift Height | 80" with truck adapters |
| Maximum Lift Height | 74" without truck adapters |
| Motor | 220V, Single Phase, 4 HP |
| Hydraulic System | Dual hydraulic cylinders, direct drive |
| Concrete Requirement | 6" thick, 3,500 PSI, reinforced |
| Shipping Weight | 2,650 lb |
| Warranty | 3 Years / 36 Months |
Built for Professional Automotive Applications
With its 14,000 lb capacity, heavy-duty steel construction, 3-stage arms, single-point lock release, and flexible symmetrical/asymmetrical configuration, the APlusLift HW-14ASY provides a versatile solution for professional vehicle lifting and service applications.
APlusLift HW-14ASY — Heavy-duty lifting capacity, flexible installation, and professional-grade construction.
